Working principle of plasma atomization equipment: The metal raw material is introduced into the high temperature and high speed plasma formed by gas, so that metal material is melted and atomized or vaporized into steam under high temperature of plasma. Then atomized metal is rapidly cooled by gas quenching cooling technology and is solidified into micron or nano spherical powder materials.
Application
Plasma atomization powder manufacturing equipment is suitable for the preparation of the following high chemical purity, ultrafine and nano powder materials.
1. Metals: Cu, Fe, Al, Mo, W, Ni, Re, Ta, Ti and their alloys;
2. Oxides: Al2O3, MgO, TiO2, ZrO2, SiO2 ,etc..;
3. Carbides: WC, TiC, B4C, SiC etc..;
4. Nitrides: AiN, TiN, BN, Si3N4 etc...
By adjusting the process, different particle size ranges of powder can be produced.
Overview
Working principle of plasma atomization equipment: The metal raw material is introduced into the high temperature and high speed plasma formed by gas, so that metal material is melted and atomized or vaporized into steam under high temperature of plasma. Then atomized metal is rapidly cooled by gas quenching cooling technology and is solidified into micron or nano spherical powder materials.
Advantages
Plasma atomization equipment can prepare the vast majority of metals and their alloy powders on the market, and can meet the preparation requirements of many special alloy powders, such as high temperature ceramic powders, tungsten, tantalum and other metal powders with high melting point.
Plasma atomization powder manufacturing technology has the following advantages:
① The powder prepared by plasma atomization technology has high sphericity and composition segregation is not easy to occur.
②Based on high thermal energy input and steady flow atomization characteristics of plasma jet, it can effectively control the microscopic defects of powder such as hollow content and satellite sphere.
③ Plasma atomization technology uses plasma as heat source, the temperature is very high, theoretically it can prepare all metal powders with high melting point.
④ The melting and atomization processes are not in contact with the crucible, purity of powder is high, almost no doping. This technology is especially suitable for manufacturing high active powder materials.
⑤ Gas consumption and comprehensive energy consumption of this technology are small.
Main Functions
We can provide 30-200KW class plasma atomization powder manufacturing equipment.
Technical Parameter
| Model | EFPA-90 | EFPA-180 | EFPA-300 |
| Ultimate Vacuum Degree | < 10Pa | ||
| Gas Rated Pressure | 0.6MPA | ||
| Protective Atmosphere | Nitrogen / Argon | ||
| Max. Melting / Gasification Temperature | ≥3000℃ | ||
| Heating Power (KW) | 90 | 180 | 300 |
| Leakage Rate | 5Pa/h | ||
| Electricity Voltage | Three phase 380V 50Hz | ||
| Cooling Water Device | Air cooling tower, water cooling unit, heat exchanger | ||
| Control Mode | Industrial control computer or PLC | ||
| Operating Interface | Touch-tone or Touch-screen | ||
| Data Record | 12 data curve records, LCD monitor display | ||
Components

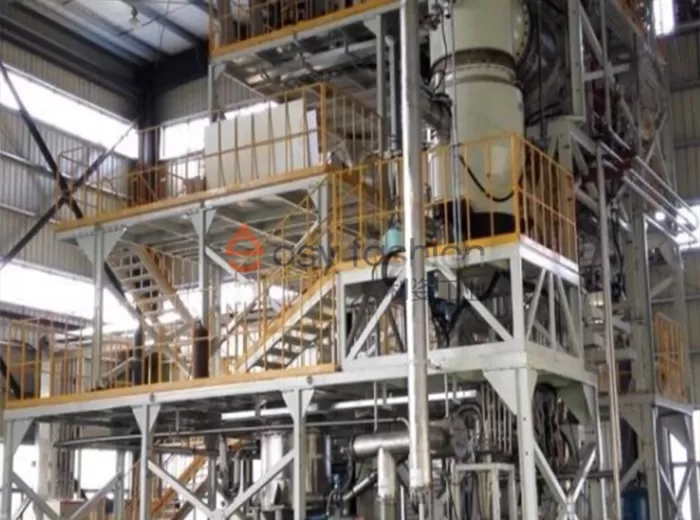

Plasma atomization equipment is mainly composed of feeding system, gas charging system, water cooling system, discharging system, control system, etc.
Others
① Nowadays, plasma atomization equipment in the market adopts wire feeding device which is with limitation. The new generation plasma atomization equipment developed by our company uses modular multifunctional feeding device to supply raw material, which can supply liquid, gas, powder material to the high temperature plasma area. This can reduce limitation of raw material shape.
② Taking use of different rapid cooling technology can manufacture nanometer powder material.
③ Equipped with chemical active material surface passivation technology to ensure the safety of product use process.
For more information, please contact us
EasyFashion is the multifaceted manufacturer of atomization powder manufacturing equipment and thermal processing equipment. We take pride in offering diversified product range which comprises powder production equipment, sintering furnaces,heat treatment furnaces etc.
