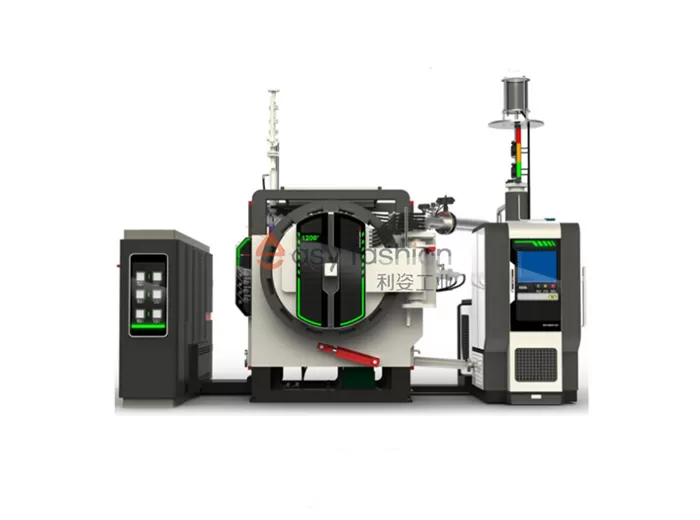

Pressure sintering furnace series are designed to integrate the functions of pressure de-waxing, vacuum de-waxing, vacuum sintering, TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, fast cooling and etc. It is mainly used in the production of high-performance cemented carbide materials.
Overview
Pressure sintering furnace series are designed to integrate the functions of pressure de-waxing, vacuum de-waxing, vacuum sintering, TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, fast cooling and etc. It is mainly used in the production of high-performance cemented carbide materials.
Advantages
Our pressure sintering furnace has the following advantages.
①High sintering density: The material in the pressure sintering furnace is sintered under high temperature and high pressure conditions, which helps to increase the sintering density of the material, thereby improving the mechanical properties of the material.
②Atmosphere control: The pressure sintering furnace has an atmosphere regulation function, which can stabilize atmosphere in the furnace, so as to better control the product quality.
③Pressure control: The pressure in the pressure sintering furnace can be controlled to achieve constant pressure sintering, so as to better optimize the sintering process.
④ Our pressure sintering furnace has high automation degree, easy to operate, with functions of manual operation, automatic control and locking, good flexibility, can achieve remote operation and remote diagnosis functions.
Technical Parameter
| Model | GN3312P-6-VI(GN5518P-6-VI) | GN3312P-10-VI(GN5518P-10-VI) | |
| Operating life | 6000 Furnace run (about 20 years) | ||
| Max. designing pressure | 6MPa | 10MPa | |
| Max. working pressure | 5.80MPa | 9.50MPa | |
| Dimension of usable space | 300×300×1200mm(500×500×1800mm) | 300×300×1200mm(500×500×1800mm) | |
| Max. load weight | 500KG(1500KG) | 500KG(1500KG) | |
| Power | 320kW(500 kW) | 370kW(590 kW) | |
| Max. designing temperature | 1600°C | ||
| Max. working temperature | 1550°C | ||
| Temperature control method | 3 zones | ||
| High temperature uniformity | ≤±7°C | ||
| Paraffin as the binder | Hc deviation | ≤±0.3KA/M | |
| Com deviation | ≤±0.2% | ||
| Temperature increasing rate (without loading) | 15°C/min（≤1000°C）10°C/min（1000-1520°C） | ||
| Ultimate vacuum | ≤ 2Pa, tested in cold and clean chamber | ||
| Vacuum leak rate | ≤ 2Pa/h, tested in cold and clean chamber | ||
| Pumping speed | ≤30 min., pumping to 5Pa in cold and clean chamber | ||
| Wax collecting rate | ≥98﹪（Paraffin as the binder） | ||
| Cooling speed (Full loading)（cooling water ≤30°C） | 1450~100°C：6~8h(1450~100°C：8~10h) | 1450~100°C：5~7h(1450~100°C：6~8h) | |
Remark: Both square or cylinder inner box could be provided. Standard available pressure types are 1MPa, 6MPa, and 10MPa. Standard sizes of usable space are 300×300×1200mm, 400×400×1200mm, and 500×500×1800mm.
Components
Pressure sintering furnace is mainly composed of pressure furnace body, furnace door, heating and insulation system, vacuum system, inflation system, cooling system, control system and so on.
Production line
For more information, please contact us
EasyFashion is the multifaceted manufacturer of atomization powder manufacturing equipment and thermal processing equipment. We take pride in offering diversified product range which comprises powder production equipment, sintering furnaces,heat treatment furnaces etc.
