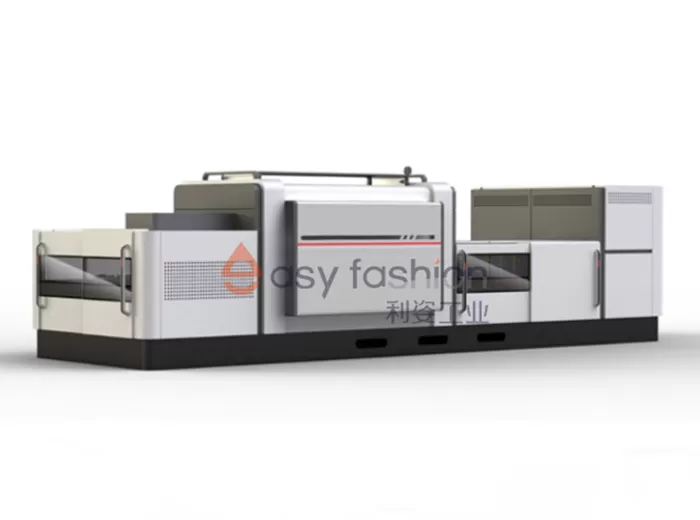

Continuous High Temperature Mo-Wire Carbonizing Furnace Factory China

Overview

Continuous high temperature Mo-wire carbonizing furnace is a kind of carbonization equipment with high automation degree, high temperature control precision, high productivity and low energy consumption. The equipment is mainly used for metal powder carbonization, compound carbonization and reduction.

Advantages

Continuous high temperature Mo-wire carbonizing furnace is an advanced heating equipment, which has a wide range of applications and superior performance

Our continuous high temperature Mo-wire carbonizing furnace has the following advantages.

① Intelligent temperature controller, three-belt heating, accurate temperature control.

② Good temperature uniformity in the furnace.

③ Long service life of heating element, high thermal efficiency.

④ Good insulation effect, low energy consumption.

⑤ Automatic program control.

Technical Parameter

Model	EF-45C
Rated voltage	380V 50Hz Three-phase five-wire
Power	150Kw
Max. temperature	1870℃
Max. working temperature	1850℃
Material of heating element	Doped Mo wire
Material of furnace tube	High purity alumina
Dimension of furnace tube section	213*220mm
Temperature control mode	3 zones
Temperature measurement mode	W-Re thermocouple
Length of heating zone	2000mm
Overall dimension	8580mm × 2790mm × 2120mm
Weight	1.4T

Components

The continuous high temperature Mo-wire carbonizing furnace is mainly composed of furnace body, feeding mechanism, discharging mechanism, cooling water system, temperature measurement system, control system and so on.
