The working principle of the 15-tube reduction furnace is mainly to heat the reaction material to achieve the required temperature and pressure conditions for reduction, synthesis or refining.
Overview

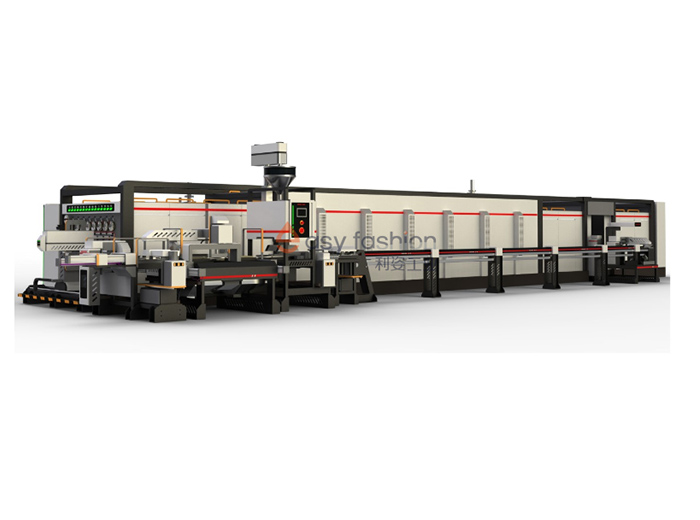

The working principle of the 15-tube reduction furnace is mainly to heat the reaction material to achieve the required temperature and pressure conditions for reduction, synthesis or refining. The 15-tube reducing furnace is a multi-tube furnace developed on the basis of digestion and absorption of foreign advanced equipment, combined with the actual situation at home and abroad, which is suitable for tungsten and molybdenum reduction.
Advantages
Our 15-tube Reducing Furnace has the following advantages.
① This furnace is fully automatic controlled, and is with widely usage.
② The furnace temperature is uniform, the fluctuation range is small, and the control accuracy is reliable.
③ The produced powder has uniform and narrow particle size distribution range.
④ The furnace is with reasonable structure with the use of a new energy-saving lining.
Technical Parameter
| Power（kW） | 460kW |
| Max. temperature（℃） | 1150 |
| Max. working temperature（℃） | 1050 |
| Heating zone number | Six zone |
| Types of push boat | Push boat pneumatically |
| Size of furnace tube | ￠140/￠128×10000（mm） |
| Hydrogen circulation amount | 450m³/h~900m³/h |
| Capacity | 1.6T |
| Furnace weight | Approximate 35000kg |
| Overall dimension (mm) | 17100×3000×2190 |
Components
The 15-tube reducing furnace is composed of heating furnace body, furnace tube, boat, boat transfer system, water cooling system, protective atmosphere control system, temperature control system, and so on.
