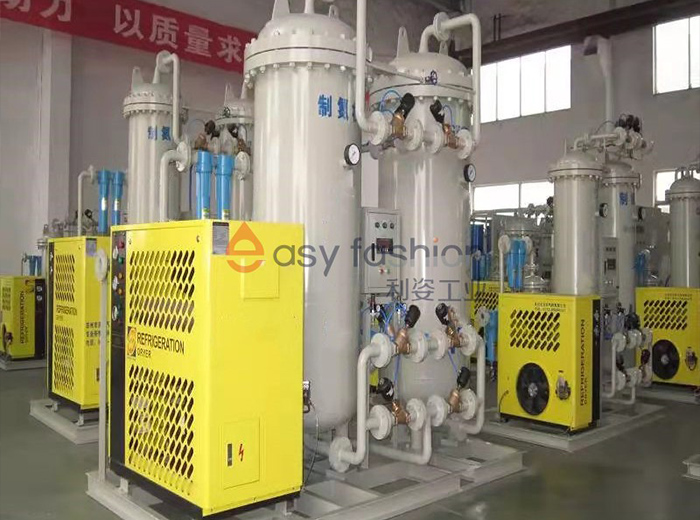

Nitrogen generating machine is a new type of air separation equipment, taking the compressed air as raw material, taking the carbon molecular sieve as the absorbent, and adopting the transformation absorption technique to produce nitrogen.
Overview
Nitrogen generating machine is a new type of air separation equipment, taking the compressed air as raw material, taking the carbon molecular sieve as the absorbent, and adopting the transformation absorption technique to produce nitrogen.
Under the normal temperature and high pressure environment, it uses the different diffusing speed of nitrogen and oxygen in the carbon molecular sieve, separating nitrogen and oxygen. And the purity of nitrogen and the output can be adjusted based on customer’s requirements.
Technical Parameter
| Model | EFPSA-595-10 | EFPSA-595-15 | EFPSA-595-20 | EFPSA-595-30 | EFPSA-595-60 | EFPSA-595-80 |
| Production rate (Nm3/h) | 10 | 15 | 20 | 30 | 60 | 80 |
| Rated power (kW) | 7.5+1.5 | 11+1.5 | 11+1.5 | 15+1.5 | 37+1.5 | 37+1.5 |
| Rated voltage of powersupply | 380V | |||||
| Outlet pressure | 0-0.6MPa (adjustable) | |||||
| Purity | 99.90% | |||||
| Dew point | <-40℃ | |||||
| Purity after purification | 100.00% | |||||
| Dew point after purification | <-60℃ | |||||
| Control system | PLC automatic control | |||||
| Information above is standard configuration. Adjustment is available upon request. | ||||||
Features
1. Metal heating treatment: nitrogen protection bright annealed, metal powder sintering nitrogen protection, gas carburizing quench, etc.
2. Chemical Industry: mainly used for protection air, replacement air and washing air to ensure safety of production.
3. Electronic Industry: used for producing electronic parts and production line nitrogen protection.
4. Food Industry: using nitrogen protection to store vegetables, fruits, seeds and tea, etc.
5. Medical Industry: inflating the nitrogen into medicine for package and delivery.
6. Other Industry: eg. the nitrogen protection in the floats law glass production line.
For more information, please contact us
EasyFashion is the multifaceted manufacturer of atomization powder manufacturing equipment and thermal processing equipment. We take pride in offering diversified product range which comprises powder production equipment, sintering furnaces,heat treatment furnaces etc.
